- Mobile Receipt
- Delivery Slip
- Ticketing
- Ticketing
- Logistics
- Restaurant/Hotel
- Retail Business
- Taxi meter
- Barcode
| Feature | SPECIFICATIONS | |
| color | Black(Or Customized basing MOQ) | |
| Print Method | Line Thermal | |
| Resolution/Total Dots | 203 dpi/384 dots | |
| Dot Density | 8 dots/mm | |
| Print Speed | Up to 90 mm (3.54 inches) per second (ips). | |
| Print Width | 48mm/line | |
|
Character |
Simplified Chinese(standard) | GB2312 |
| Traditional Chinese(optional*) | Big5(TaiWan),GB18030(HongKong) | |
| Japanese((optional*) | Shift-JIS | |
| Korean((optional*) | Code page 949 | |
| Extendedcharacter sets (Standard) |
OEM437(Standard Europe),Katakana, OEM850(Multilingual),OEM860(Portuguese), OEM863(Canadian-French),OEM 865(Nordic), West Europe,Greek,Hebrew,East Europe,Iran, WindowsCode Page 1252,OEM866(Cyrillic#2),OEM 852(Latin2),OEM858,IranII,Latvian,Arabic,Windows Code Page 1251, OEM864 |
|
|
Font |
Simplified Chinese(standard) | 24×24dots 16 characters/line |
| Traditional Chinese(optional*) | 24×24dots 16 characters/line | |
| Japanese(optional*) | 24×24dots 16 characters/line | |
| Korean(optional*) | 24×24dots 16 characters/line | |
| Font A(standard) | 12×24dots 32 characters/line | |
| Font B(standard) | 9×17dots 42 characters/line | |
|
Code |
1D Barcode(standard) | EAN13, EAN8, UPC-A, UPC-E, Code 93, ITF Codabar, Code 39, Code 128 |
| 2D Code(standard) | PDF417,QRCODE | |
| Emulation | ESC/POS+ additional unique commands | |
| Data Buffer | 10K Bytes | |
|
Printer Size |
Length | 106mm |
| Width | 75mm | |
| Height | 45m | |
|
Interface |
Bluetooth V2.0(EDR,Class 2) | Applied in Android/Windows/Wince OS |
| Bluetooth V4.0 (BR/EDR/LE,Class 2) | Applied in Android/iOS/Windows/WinceOS | |
| Wi-Fi | Wireless Standard:Compatible with IEEE802.11b/g/n Frequency:2.4GHZ Work Mode:STA/AP Advantages: Multi-TCP Link(5 channel) supported Ultra Low Power Applied in Android/iOS/Windows/Wince OS | |
| RS232 serial | Applied in Windows OS or RS232 compatible device | |
| USB | Applied in Android/Windows/Linux OS | |
|
Power |
External Adapter | 100V~240V AC Input à9V 1.5A~2ADC output |
| Built-in Battery | Lithium-Ion 7.4 V. 1500 mAh | |
| Charging Time | About 3 hours | |
| Battery Duration | Standby time >40hours, can print receipts >800pcs(each receipt length= 15cm) with one full charge | |
| Maximum Print Lines per Charge | 50,000 (continuous printing with printing rate 25% max ) | |
| Reliability (MTBF) | 50km (printing rate 25% max) | |
| Weight | Net Weight | <125g |
| Package Weight | <500g | |
|
Paper |
Thickness | 0.06 to 0.08mm |
| Width | 56mm~58.5mm | |
| Diameter | <=40mm | |
| Operating Condition | temperature | -10°C to 50°C |
| Humidity | 10%~80% | |
| Storage Condition | temperature | -40 ℃~70 ℃ |
| Humidity | 10%~95% | |
Remark 1: optional* listed above means it`s not for the standard shipment, so please leave us messages if you wanna purchase optional
version. Or else we will ship the goods with standard version.
Remark 2: For standard shipment, we have 4 combinations of interfaces for your ordering, and all go with built-in battery.
1>Bluetooth V2.0 + USB + RS232 serial
2>Bluetooth V4.0 + USB + RS232 serial
3>Wi-Fi + USB + RS232 serial
4>USB + RS232 serial
If you have other requirements, please feel free to let us know,we can OEM for you. For example, some customers do not
need the printer with battery, may need external power adapter or car charger only.

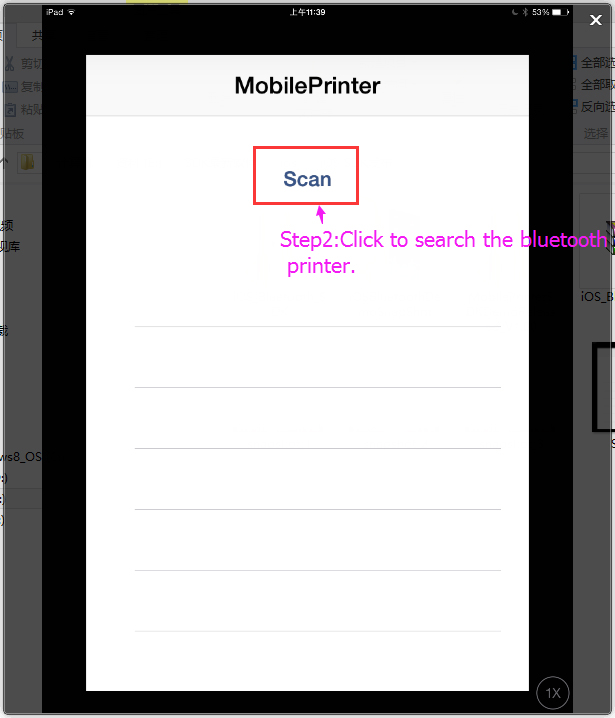

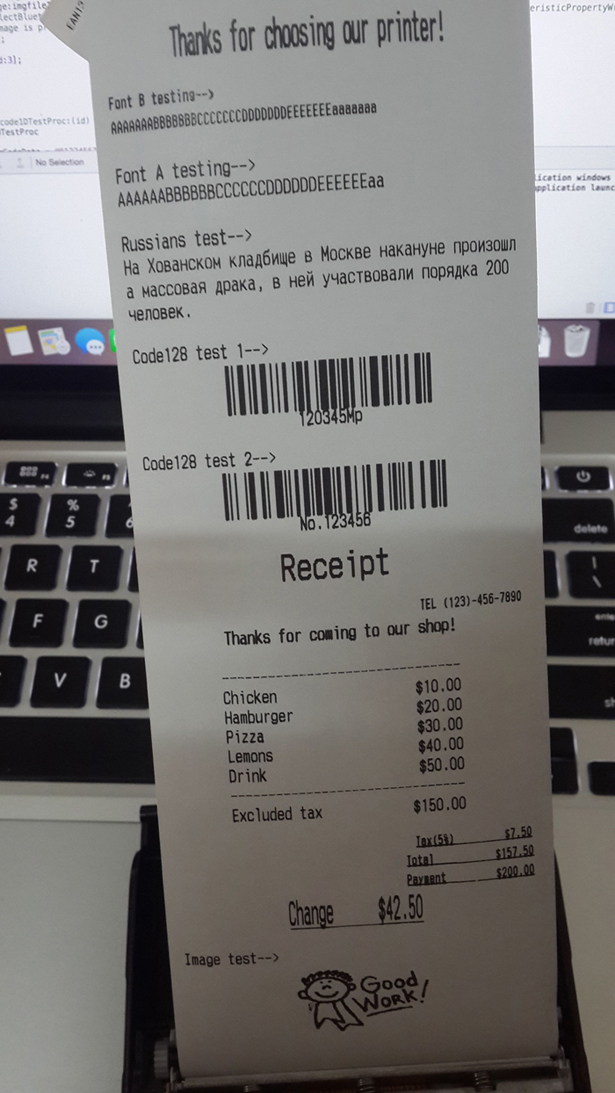

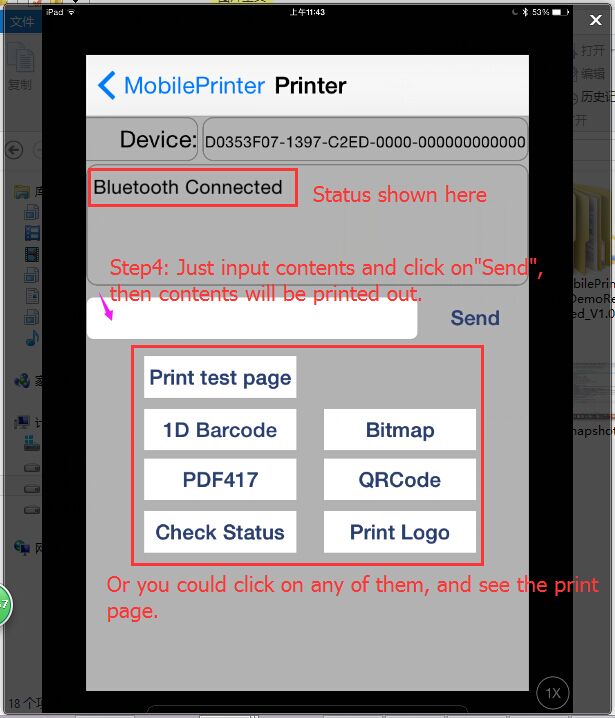

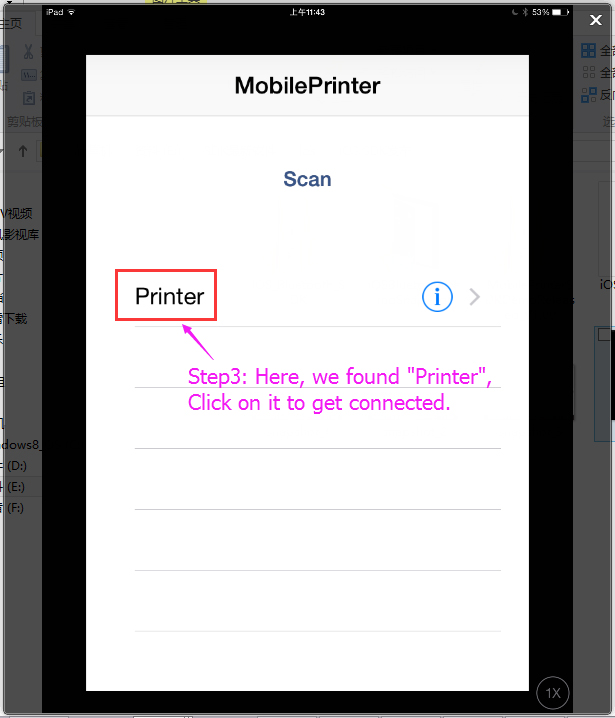

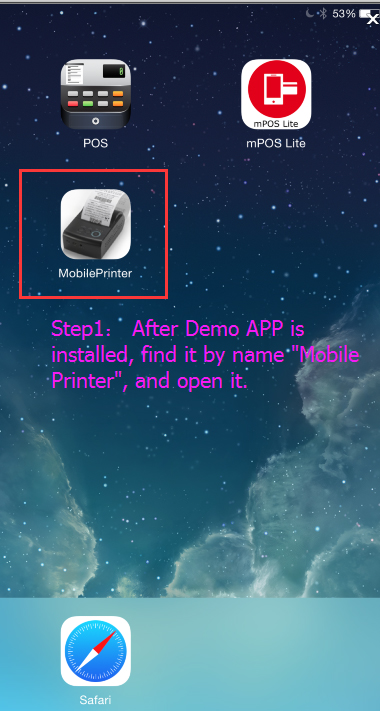

How do we print a sample receipt using our Apple iOS Bluetooth print demo ?
( A basic/easy iOS App with source code to be provided)
